Crypto Mining using NodeMCU

Share:


Crypto Mining using microcontrollers, wait what!!! Are you serious? How?
Believe it or not, the rig you see onscreen actually mines a crypto currency called DUINO-Coin (ᕲ) or DUCO.
The total cost of this rig is only $35.
Now, if you believe me! then, grab yourself a cup of coffee, sit back and watch this video and start your journey into cryptocurrency with DUINO-Coin!



Sponsors

This video is sponsored by PCBWay.


PCBway:  only $5 for 10 pcbs from  https://www.pcbway.com/?from=CZcouple

PCBWay specialize in manufacturing of very high quality, low-volume, colored PCBs at a very budgetary price. In addition to the standard PCBs, you can also order Advanced PCBs, Aluminum PCBs, FPC/Rigid-flex PCBs. They also provide PCB assembly and other related service which can meet your needs to the greatest extent.

The ordering process from PCBWay is very easy. Once I had my design ready, I just had to upload the gerber file to the PCBWay's website and select the type, color and any other customization that I want and then just send it for fabrication.
For my project, I choose the black color. PCBWay ships from china to most of the countries of the world within 3 to 7 business days. Talking about the quality, its absolutely mind-blowing.


What is DUINO-Coin?


DUINO-Coin (ᕲ) was founded in 2019 and is a for-fun project. This project was developed by a team of young developers that focuses on energy efficient mining. It's mostly, but not only, dedicated to people who are just starting out in the crypto world and it doesn't require any expensive hardware.
DUCO is a transparent, open-source, centralized, eco-friendly coin that focuses on mining with low-powered devices like Arduino. DUCO tries to achieve a reward system using "Kolka" a name derived from Coca Cola making the low-powered devices like Arduino earn almost the same or even "more" than a powerful device like CPUs or GPUs. It also prevents people from building huge mining farms. It causes each additional miner to earn a bit less from the previous one.
DUCO is "centralized" and has an "infinite supply" and hence you can mine this coin forever.

You can Mine DUCO using:
  Android smartphone
  Computer's CPU
  Arduino (or compatible AVR)
  Raspberry Pi, Orange Pi or Banana Pi
  ESP8266/ESP32 (or compatible boards)
  Internet browser on PC or smart-TVs
  Arduinos using ESP8266 as a host
  Arduinos using Raspberry Pi as a host

Centralization: Making Arduino and other low powered devices not only profitable, but just possible would be impossible to maintain if the coin was decentralized. Hence, DuCo is a centralized coin with it's own chain. It is however possible to wrap (convert) DUCOs to wDUCO, bscDUCO, celoDUCO or maticDUCO to store them in decentralized form on another coin's chain.

To start your journey, have a look at the getting started with Duino-Coin webpage. Then, create a wallet to store your coins. Next, download the miner binaries for the device you are going to mine the coin.
If you are super tech savvy, then have a look at the coins whitepapers. The link is in the description below.

In my setup, I am mining DUCO using NodeMCU.


Schema


The setup is very simple. In my setup I have added an extra LED to give my board a bit of Si-Fi look.
Mining with ESP boards allows you to mine headlessly - you don't need to have them connected to a computer as they have their own Wi-Fi capabilities to connect to the server.

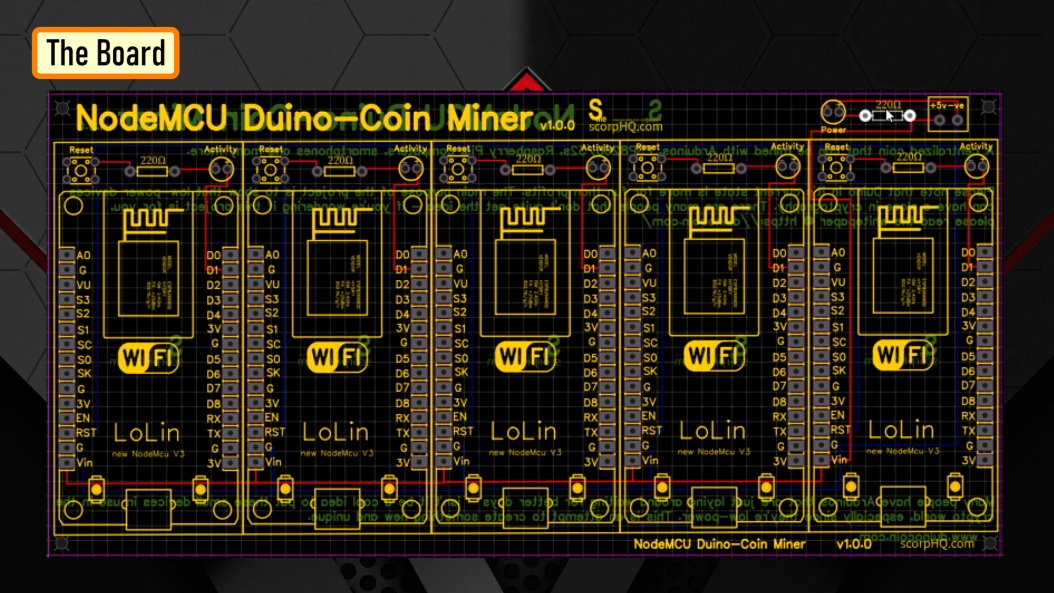

The Board


Now, lets have a look at my board. You can hookup, 5 x NodeMCUs to this board. Each NodeMCU has its own flashing LED. The board can be powered using just 5v using a USB cable.
So, this is how the NodeMCU DUCO Miner blade looks like in 3D.



Soldering


Lets start by soldering all the small components to the board.
I first soldered all the LEDs and the resistances to the board.
Since I care a lot about my Sensors and Microcontrollers, I am not going to solder them directly to the board. Instead I am soldering 'female pin headers' to the board which will house the NodeMCUs in them.

Finally, I soldered a USB cable to power the blade. I extracted this cable from a broken iPhone's charger.

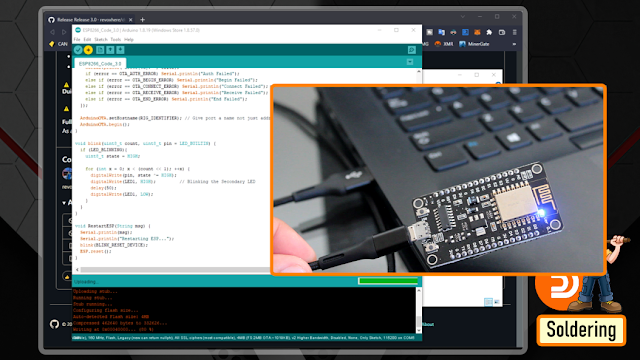

Code


I downloaded the code from the DUINO-coins website. The current version is 3.0. I downloaded the windows version and then added my code block to make the blue LED flash on my blade.
In the code, you just need to edit few line in the top section to add your Wi-Fi details and the name of the NodeMCU.

If you're using an ESP8266 board, you can set the clock speed (Tools > CPU frequency) to 160 MHz to achieve better hash-rates.


Then, just go ahead and upload the code one by one to all your NodeMCU's. Before adding the NodeMCU to your rig, it is a good idea to check it using the Arduino Serial Monitor (Tools > Serial Monitor), set the baud rate to 500000 baud and see how's the ESP is doing. If everything is correct, you should see messages saying that a share was accepted.
If it all works fine, your ESP will mine as long as it has power and internet connection.


Demo


So, this is how my final setup looks like.
To be very frank, the setup actually looks like having a small Christmas tree on your table, ha ha.


Hash-Rate


Mining DUCO at this stage is not very profitable. However, I just wanted to share the hash-rate table with you guys.
Remember, Kolka will play an essential role, as you keep on adding devices to your rig.
So, the hash-rate you will get may not be same as what you see on-screen.


Claiming Via Faucets


You can also claim DUCO via web-faucets.
I have scene many faucets coming in and completely disappearing, so the links provided in the video may not be valid when you try to access them.
The first one in list is the "faucet.duinocoin.com". You can claim 1 DUCO from this website by solving a captcha to start your journey. Remember you can only claim once from this website.
The next one is the "furim.xyz". Again, you just need to solve a captcha to earn some DUCO.
The 3rd one in list is "duco-faucet.pcgeek.pl" same as the other two, you can claim some DUCO every 15 minutes by solving a captcha on this website.


Exchanging DUCO


After mining some DUINO-Coins, you may want to exchange them to some other currency.
To exchange your coins, simply visit the website and select the currency you want to exchange. At the moment of writing this tutorial, DUCO Exchange supports XMG, BCH, TRX, BYND and LKE coins.
After deciding which coin you want exchanged, simply fill in the exchange form and wait for the exchange to happen (it may take up to 72 hours). You'll shortly receive an e-mail confirming the process and describing any further steps if needed.

Other exchanges:
Other exchanges supporting DUINO-Coin are Node-S, PancakeSwap, SunSwap, and SushiSwap.


Thanks

Thanks again for checking my post. I hope it helps you.
If you want to support me subscribe to my YouTube Channel: https://www.youtube.com/user/tarantula3

Blog Posts:  Visit Website
Video references: Visit Website

Code
Release 3.0 Original: Download
Release 3.0 Modified: Download

Resource Pages
Getting started: Visit Website
Create Wallet: Visit Website
App list: Visit Website
Exchange: Visit Website
White Paper: Visit Website

Dashboards
Dashboard-1: Visit Website
Dashboard-2: Visit Website
Dashboard-3: Visit Website

Facets List
Faucet-1: Visit Website
Faucet-2: Visit Website
Faucet-3: Visit Website

Discussion
Discord: Visit Website
Reddit : Visit Website

Support My Work:
BTC:  1M1PdxVxSTPLoMK91XnvEPksVuAa4J4dDp
LTC:  MQFkVkWimYngMwp5SMuSbMP4ADStjysstm
DOGE: DDe7Fws24zf7acZevoT8uERnmisiHwR5st
ETH:  0x939aa4e13ecb4b46663c8017986abc0d204cde60
BAT:  0x939aa4e13ecb4b46663c8017986abc0d204cde60
LBC:  bZ8ANEJFsd2MNFfpoxBhtFNPboh7PmD7M2

Thanks, ca again in my next tutorial.
