Andonstar AD209 10" Adjustable LCD Display Microscope

October 29, 2022 0 comentários
Share:

Intro


When I was a little boy, I always wanted to own a MicroScope to view the amazing world of micro organisms.
As I grew up and started digging my head into the world of electronics, I felt more and more in love with MicroScopes.
In this video, I am going to unbox and show you guys the Andonstar AD209 10" Adjustable 1080P LCD Display Microscope for soldering electronic components.


Package Contents


I ordered this microscope from AliExpress. It only took around 15 days for me to receive this package here in Australia.

It was almost Christmas-in-October for me when I received this package from AliExpress. I was super exited to open the box and see what's inside. The package includes:
  • 1 x Microscope
  • 1 x Adjustable Metal Stand With Lights
  • 1 x 5V USB Power Cable (with light dimmer)
  • 2 x Metal Clips
  • 1 x Instruction Manual
The package is quite light, roughly around 2KG all up and it comes with 1 year of warranty.




Assembly and Features


After opening the box the first thought that came into my mind was that, this is not going to be an easy assembly.
But to be very frank, I did not even look into the instruction manual and I was able to assemble the microscope without any aid.

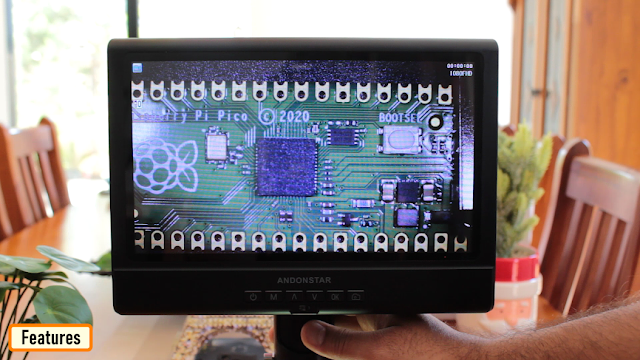

The Microscope has a large 10inch LCD display with 1280x800 screen resolution.
The Video resolution is FHD 1920x1080 30FPS; 1080P 1440x1080 30FPS； 720P 1280x720 30FPS;
The Photo resolution is 4032x3024(12M) Max.




Conventional microscopes are not suitable for long time observation, and the observation is also inconvenient and causes eyes fatigue very easily. Another disadvantage of conventional microscopes is that, only 'one person' can observe it at a given time. The Image and videos can not be shared, recorded or saved.




Andonstar AD209 has an 10" display for real time observation by multiple people at once. It also supports AVI format video and image recording on a plug and play memory card up to 32GB in size.

At the base of this MicroScope is a black metal plate with 2 metal clips on it.
The height adjustable metal stand provides 3D vision of the solder joints to easily identify faults and false soldering.



The angle of the microscopes display can be adjusted to facilitate multi-angle observation.
The metal bracket can be adjusted front and rear, which gives a 3D visual effect with a large operating space.

The screen supports 12 languages and can be powered using a 5V USB power supply.
2 brightness controlled LED lights with 8 LEDs each makes the image super sharp.

Magnification ranges from 3X to 200X, which is pretty decent.


Uses


Andonstar AD209 MicroScope can be used for:
  • PCB Checking and Soldering
  • Watch and Phone Repair
  • Antique Authentication
  • Plant and Insect Exploration
To be very frank, if you have kids at your home, this is absolutely an amazing tool for them to explore the world of micro organisms.





Thanks

Thanks again for checking my post. I hope it helps you.
